The YF12 Smart Door Lock combines cutting-edge technology with sleek, futuristic design to offer unparalleled security and convenience. Featuring advanced biometric recognition, including fingerprint and M1 card support, it ensures quick, seamless access while maintaining the highest level of protection. With its intuitive AI-powered security system, the YF12 not only guards your home but also adapts to your needs, providing intelligent control via a smartphone app. Experience the ultimate in smart living with features like encryption, wireless connectivity, and precision engineering, all housed in a sleek, modern frame. Elevate your security to the next level with the YF12, where technology meets luxury.

Download Brochure
Advanced Security

Advanced Security

AI-powered biometric recognition for secure access.

Seamless Connectivity

Seamless Connectivity

Wireless control through the Tuya Smart app.

Premium Design

Premium Design

Sleek, modern aesthetics with precision engineering.

Intuitive Features

Intuitive Features

Supports fingerprint, password, and M1 card entry.

Multiple Unlocking Methods

Multiple Unlocking Methods

The YF12 Smart Door Lock offers versatile unlocking methods for maximum convenience and security. It features advanced fingerprint recognition, supporting up to 50 fingerprints, including 10 administrator users, ensuring fast and secure access. In addition, users can choose to unlock the door using a 6-12 digit passcode (up to 200 entries), an encrypted M1 card (up to 200 cards), or a traditional mechanical key as a backup. The lock is also compatible with Tuya Smart or Smart Life mobile apps, allowing remote access from your smartphone for even greater convenience.

Advanced System Settings

With the YF12, you have complete control over your security settings. Choose between single-user verification or combination unlocking, where two users must verify their credentials to unlock the door. The lock allows you to set specific time-based access for different users, and you can easily adjust the language and volume settings to suit your preference. Customize the lock time interval from 2 to 9 seconds and activate the anti-skid alarm to alert you in case of unauthorized access attempts.

Advanced System Settings

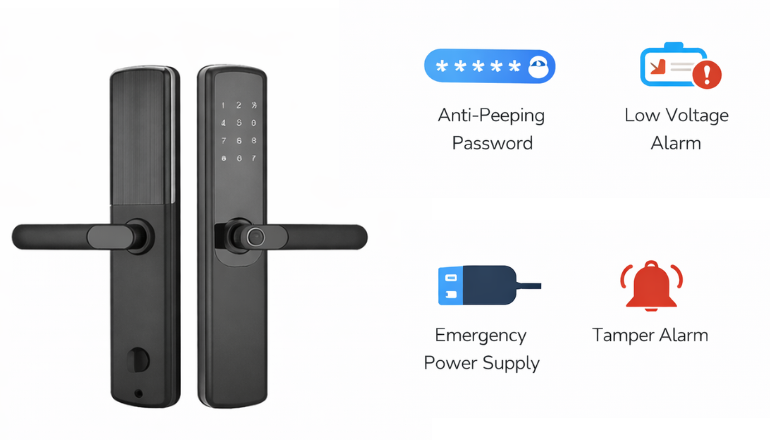

Security & Privacy Features

Security & Privacy Features

The YF12 is built to ensure the highest level of security and privacy. Its anti-peeping password feature allows you to add random digits before or after your correct code, making it nearly impossible for someone to observe your password. The lock also includes a low voltage alarm that will notify you when the battery falls below 4.8V, so you can replace it before it runs out. In case of an emergency, the lock provides an emergency power supply via a USB port. For added protection, the system will trigger an alarm in case of tampering and automatically enter dormancy after 20 seconds of inactivity.

User Management & Logs

The YF12 allows you to store up to 200 users, with each able to access the lock using their fingerprint, password, or M1 card. You can easily edit user information, disabling or re-inputting access credentials as needed. The lock keeps a detailed access log, recording every unlock, input, and alarm event. For added flexibility, it supports remote user management via the Tuya Smart or Smart Life apps, letting you add or remove users as necessary. Additionally, the lock can be reset to factory settings if required.

User Management & Logs
Technical Specifications

Technical Specifications

Designed for reliability and long-term performance, the YF12 operates on DC 4.8V-6.5V (using 4 AA alkaline batteries). It draws an average current of 200mA, with a maximum of 300mA. The fingerprint sensor has a high resolution of 508 DPI, ensuring accurate recognition with a false rejection rate of less than 1%. The lock also supports NFC card access at a frequency of 13.56 MHz, with the ability to store up to 200 cards. It can operate in extreme temperatures, ranging from -25°C to 60°C, and is anti-static, with protection against contact discharge of ±8KV and air discharge of ±15KV.

YF12 Smart Lock: Future-Ready Security with Seamless Access

Smart Lock delivers top-tier security with effortless access, merging innovation and convenience for the ultimate smart home experience.

YF12 Smart Lock: Future-Ready Security with Seamless Access

Multiple unlocking methods, including fingerprint, password, and NFC card, offering unmatched security. With customizable settings, remote management, and real-time access logs, it ensures a secure and convenient experience at your doorstep

Key Specifications

Smart Door Lock – Y11

Frequently Asked Questions (FAQs)

Do you have some other questions please get touch with our expert team.

  • What unlocking methods does the YF12 Smart Lock support?

    The YF12 Smart Lock supports fingerprint recognition, 6-12 digit password, NFC cards, and traditional keys for versatile access options.

  • How many users can the YF12 Smart Lock store?

    The YF12 can store up to 200 users, including fingerprints, passwords, and NFC cards. You can easily manage and edit user information.

  • Can I control the lock remotely?

    Yes, you can control the YF12 Smart Lock remotely through the Tuya Smart or Smart Life apps for added convenience and security.

  • What happens if the batteries run low?

    When the battery voltage drops below 4.8V, the lock will notify you with a low battery alert, ensuring you replace the batteries before it runs out of power.
